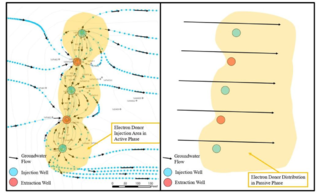

Figure 2. Electron donor distribution during the active semi-passive amendment injection phase (left panel) and the passive phase (right panel).
